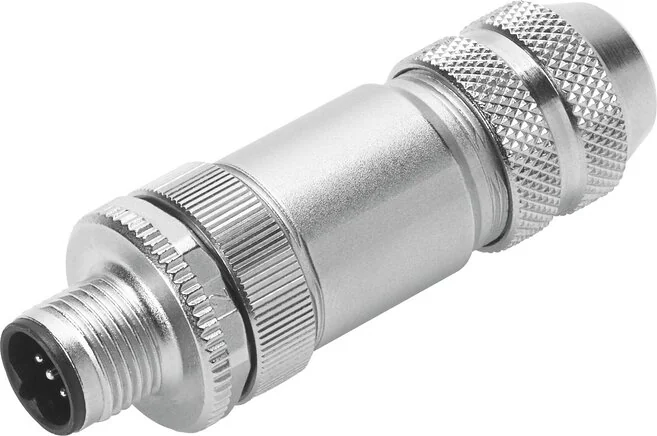

Festo - NECU-M-S-B12G5-C2-PB-1066354 - Plug

SKU: festo-necu-m-s-b12g5-c2-pb-1066354

Browse all parts
Festo - NECU-M-S-B12G5-C2-PB-1066354 - Plug

€49.84€42.60 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€49.84

Brand
Festo
Plug Coding
B
Housing Material
nickel-plated, Zinc pressure cast
Based On Standard
EN 61076-2-101, EN 61984
Protection Category
IP67
Transfer Properties
DIN EN 50173 / CAT 5
Material Information
Copper and PTFE-free, RoHs compliant
1 - low corrosion stress
LABS (PWIS) Conformity
3
Plug Contacts Material
brass, Gold plated
Electrical Connection 1
Plug straight, M12x1, 5 pin, B-coded, Shieldable
Electrical Connection 2
Screw clamp, Shieldable
Ambient Temperature (°C)
-25 to 85
Permitted Cable Diameter (mm)
6 to 8
Operating Voltage Range AC (V)
0 to 60
Operating Voltage Range DC (V)
0 to 60
Connection Cross-section (mm²)
0.14 to 0.75
Current Carrying Capacity At 40°C (A)
4,0
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
EAN
4052568104825
Manufacturer
Festo
