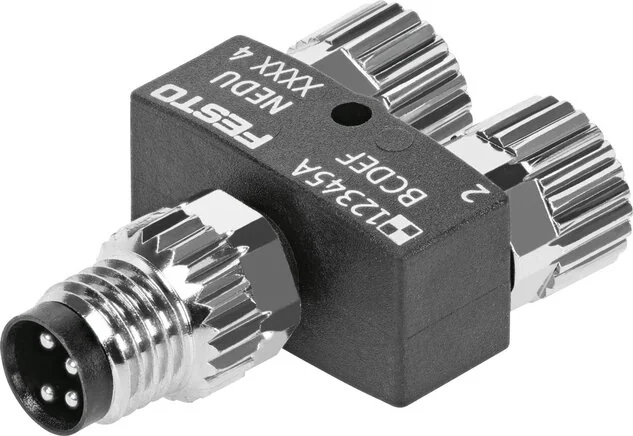

Festo - NEDY-L2R1-V1-M8G3-N-M8G4-8005312 - Distributor

SKU: festo-nedy-l2r1-v1-m8g3-n-m8g4-8005312

Browse all parts
Festo - NEDY-L2R1-V1-M8G3-N-M8G4-8005312 - Distributor

€24.97€21.34 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€24.97

Brand
Festo
Fastening Type
With Accessories, With Throughway bore for screws M2
Distributor Type
2 to 1
Housing Material
PC, TPE-U(PUR)
Line Designation
Without sign holder
Based On Standard
EN 61076-2-104
Cable Shield Colour
Grey
Construction Set Up
Y-distributor without cable
Protection Category
IP65, IP68, IP69K
Material Information
halogen free, Copper and PTFE-free, RoHs compliant, Phosphoric acid ester free
NBR
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
Nickel-plated brass
Plug Contacts Material
Copper alloy gold plated
Degree Of Contamination
3
Threaded Sleeve Material
Nickel-plated brass
Ambient Temperature (°C)
-25 to 85
Bearing Temperature (°C)
-25 to 85
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range AC (V)
0 to 30
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
round
Electrical Connection 1, Function
Control screen
Electrical Connection 2, Function
Field device screen
Electrical Connection 1, Cable Output
straight
Electrical Connection 2, Cable Output
straight
Current Carrying Capacity At 40°C (A)
3
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
2x socket
Electrical Connection 1, Occupied Pin / Wire
4
Electrical Connection 2, Occupied Pin / Wire
3
UKCA Marking (See Declaration Of Conformity)
black
Electrical Connection 1, Connection Technology
M8x1 A coded to EN 61076-2-104
Electrical Connection 2, Connection Technology
M8x1 A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 2, Number Of Pins / Wires
3
Electrical Connection 1, Compatible Type Of Mounting
round
EAN
4052568278113
Manufacturer
Festo
