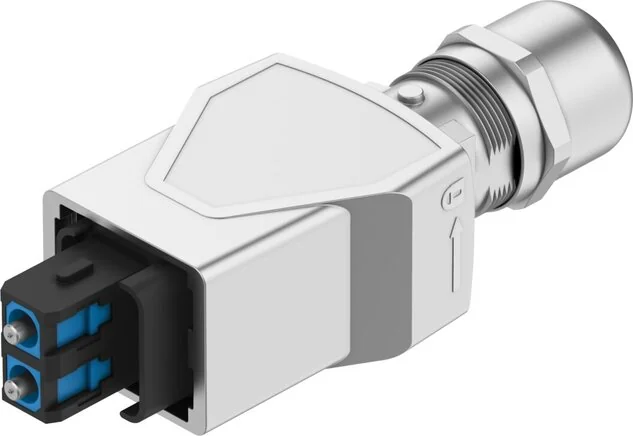

Festo - NOCC-M-S-SCRJG2PP-C5-PN-5195381 - Plug

SKU: festo-nocc-m-s-scrjg2pp-c5-pn-5195381

Browse all parts
Festo - NOCC-M-S-SCRJG2PP-C5-PN-5195381 - Plug

€115.46€98.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€115.46

Brand
Festo
Report
PROFINET LWL
Torque (Nm)
0,42
Cable Output
straight
Shaft Length
650 nm
Material Note
RoHs compliant
Conductor Type
Polymerfaser
Housing Colour
silver
Seals Material
TPE
Fire Inspection
UL94 V-0
Ferrule Material
Kupfer-Legierung
Housing Material
Zinc pressure cast, nickel-plated
Wire Diameter (mm)
0,98 to 1
Cable Diameter (mm)
5,5 to 10
Protection Category
IP67
Additional Functions
meets requirements acc. to AIDA
Complies To Standard
IEC 61754-24
Connection Frequency
100
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-25 to 70
Bearing Temperature (°C)
-40 to 70
Optical Connection 1, Design
Angular
Corrosion Resistance Class KBK
1 - low corrosion stress
Optical Connection 1, Mounting Type
Push-Pull with lock against accidental pulling
Information About Protection Category
In mounted condition
Optical Connection 1, Connection Type
Plug
Optical Connection 1, Connection Diagram
995772
Optical Connection 1, Assigned Poles/cores
2
Optical Connection 1, Connection Technology
SC-RJ nach IEC 61754-24
Optical Connection 1, Ferrule Diameter (mm)
2,5
Optical Connection 1, Number Of Poles/cores
2
Optical Connection 2, Connection Technology
Klemmmutter
EAN
4052568647209
Manufacturer
Festo
