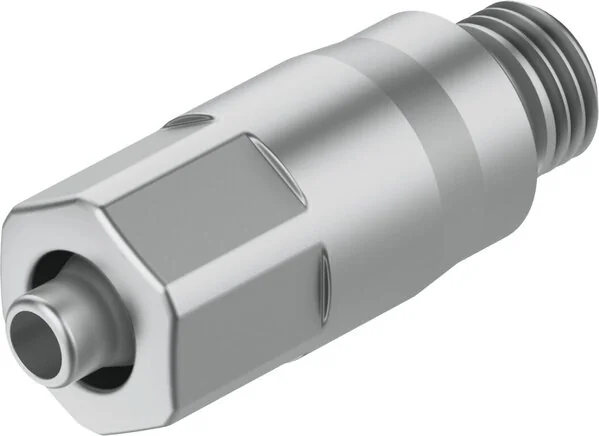

Festo - NPCK-C-D-M5-K4-1857681 - Fitting

SKU: festo-npck-c-d-m5-k4-1857681

Festo - NPCK-C-D-M5-K4-1857681 - Fitting

€23.13€19.77 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€23.13

Brand
Festo
Design
straight shape
Material Note
RoHs compliant
Stud Material
High-alloyed stainless steels
Gasket Material
EPDM
Operating Medium
Wasserdampf
Seal Type On Stud
O-ring
Food Compatibility
See expanded material information
Nominal Width (mm)
2
Protection Category
IP69K
Locking Nut Material
High-alloyed stainless steels
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
Male thread M5
Pneumatic Connection 2
für Schlauch Außen-Ø 4 mm
Ambient Temperature (°C)
-20 to 120
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Nominal Tightening Torque (Nm)
1,5
Information About Operating Pressure
Wasserdampf: 0 - 0,15 MPa, 0 - 1,5 bar, 0 - 22 psi
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 10 %
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
EAN
4052568062347
Manufacturer
Festo
