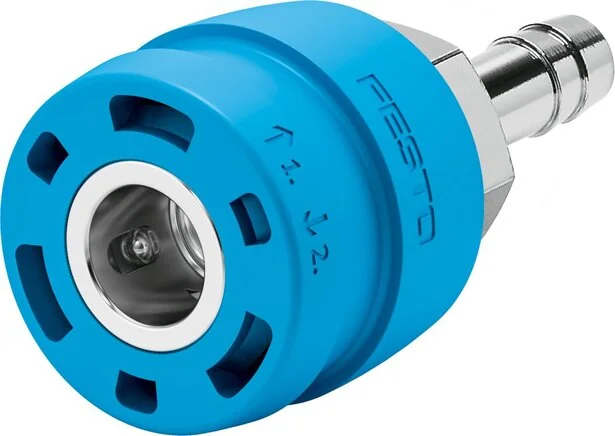

Festo - NPHS-D6-P-BC9-8059274 - Coupling Socket

SKU: festo-nphs-d6-p-bc9-8059274

Festo - NPHS-D6-P-BC9-8059274 - Coupling Socket

€31.41€26.85 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€31.41

Brand
Festo
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Pins Material
High-alloyed stainless steels
Seals Material
NBR
Spring Material
High-alloyed stainless steels
Housing Material
brass, nickel-plated
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
7
Valve Body Material
Brass
Inside Ring Material
POM
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Schlauchtülle 9 mm
Threaded Piece Material
brass, nickel-plated
Ambient Temperature (°C)
-10 to 60
Material Releasing Sleeve
High-alloyed stainless steels
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
Nominal Flow Rate Standardised According To ISO 8778
1184,8 to 1748,5
Standard Nominal Flow Rate (Standardised To DIN 1343)
1093 to 1613
EAN
4052568290191
Manufacturer
Festo
