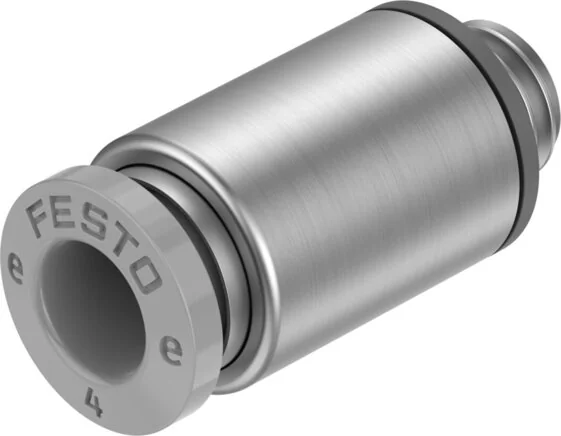

Festo - NPQE-DK-M5-Q4-F1A-P10-8144595 - Push-In Fitting

SKU: festo-npqe-dk-m5-q4-f1a-p10-8144595

Festo - NPQE-DK-M5-Q4-F1A-P10-8144595 - Push-In Fitting

€10.05€8.59 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€10.05

Brand
Festo
Size
Mini
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Fastening Type
Hexagon socket SW2.5
Sleeve Material
POM
Housing Material
High-alloyed stainless steels
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Seal Type On Stud
gasket
Nominal Width (mm)
2,5
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Male thread M5
Pneumatic Connection 2
für Schlauch Außen-Ø 4 mm
Thread Sealing Material
High-alloyed stainless steels
Ambient Temperature (°C)
60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
0,8
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 5 %
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,8
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568581107
Manufacturer
Festo

Be the first to write a review!

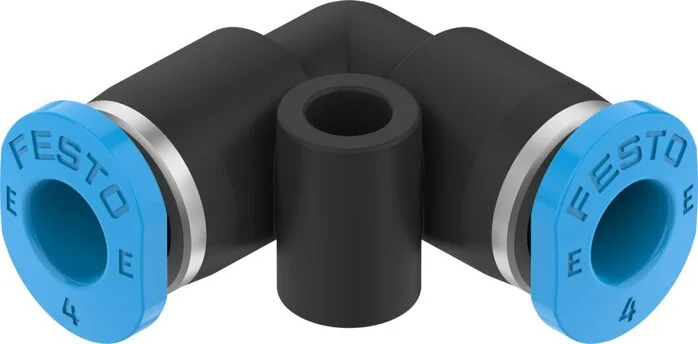

Similar items you might like
