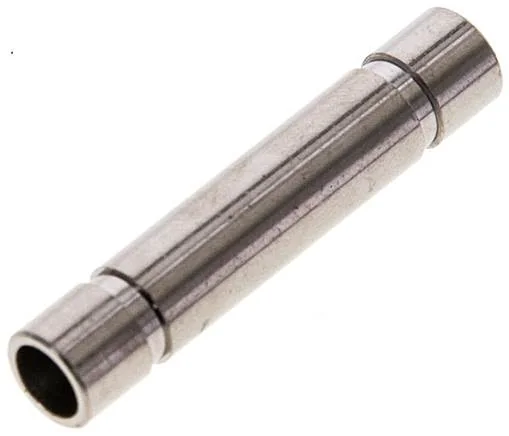

Festo - NPQH-D-S8-E-P10-578319 - Push-In Sleeve

SKU: festo-npqh-d-s8-e-p10-578319

Browse all parts
Festo - NPQH-D-S8-E-P10-578319 - Push-In Sleeve

€6.96€5.95 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€6.96

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Housing Material
Messing, chemisch vernickelt
Operating Medium
Wasser (flüssig, eisfrei)
Certification Body
NSF C0523185
Food Compatibility
NSF/ANSI 169
Nominal Width (mm)
6
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Steckhülse Ø 8 mm
Pneumatic Connection 2
Steckhülse Ø 8 mm
Ambient Temperature (°C)
0 to 150
Corrosion Resistance Class KBK
3 - severe corrosion stress
Information About Operating Pressure
Wasser: max. 0,6 MPa bei 0 - 50 °C
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 2
Cleanroom Suitability, Measured According To ISO 14644-14
Statisch installiertes Element, keine sinnvolle Bewertung möglich nach ISO 14644-1
EAN
4052568060220
Manufacturer
Festo
