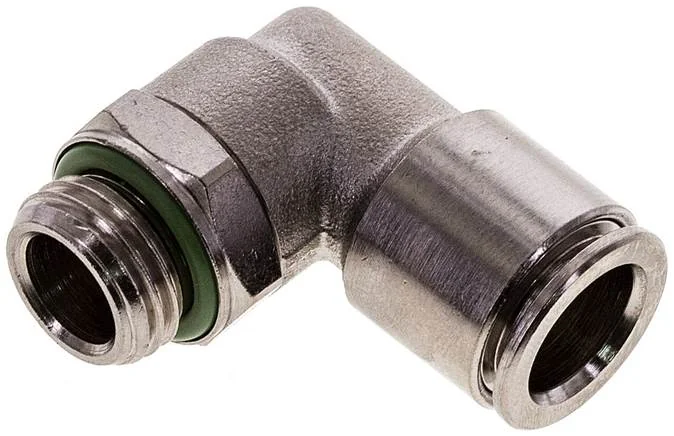

Festo - NPQH-L-G14-Q10-P10-578285 - L Fitting

SKU: festo-npqh-l-g14-q10-p10-578285

Browse all parts
Festo - NPQH-L-G14-Q10-P10-578285 - L Fitting

€10.68€9.13 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€10.68

Brand
Festo
Size
Standard
Design
L-Form
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
silver
Fastening Type
Außensechskant SW16
Sleeve Material
Messing chemisch vernickelt
Housing Material
Messing, chemisch vernickelt
Operating Medium
Wasser (flüssig, eisfrei)
Seal Type On Stud
gasket
Certification Body
NSF C0523185
Food Compatibility
NSF/ANSI 169
Nominal Width (mm)
8
Construction Set Up
Push-pull principle
Guard Ring Material
PEI
Thrust Ring Material
PEI
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G1/4
Pneumatic Connection 2
für Schlauch Außen-Ø 10 mm
Hose Plug-in Depth (mm)
18,3
Thread Sealing Material
FPM
Ambient Temperature (°C)
0 to 150
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
3 - severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
7,5
Information About Operating Pressure
Wasser: max. 0,6 MPa bei 0 - 50 °C
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 2
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568059880
Manufacturer
Festo
