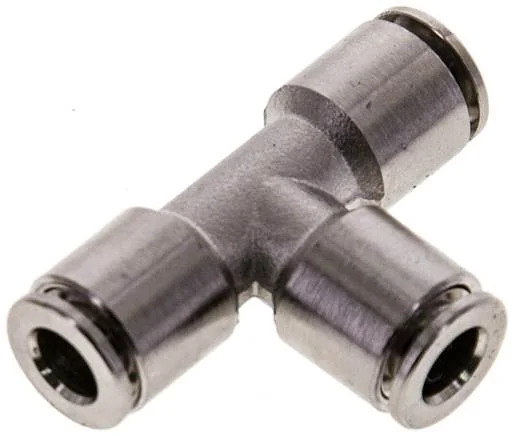

Festo - NPQH-T-Q6-E-P10-578381 - T Push-In Fitting

SKU: festo-npqh-t-q6-e-p10-578381

Browse all parts
Festo - NPQH-T-Q6-E-P10-578381 - T Push-In Fitting

€9.86€8.43 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€9.86

Brand
Festo
Size
Standard
Design
T-shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
silver
Sleeve Material
Messing chemisch vernickelt
Housing Material
Messing, chemisch vernickelt
Operating Medium
Wasser (flüssig, eisfrei)
Certification Body
NSF C0523185
Food Compatibility
NSF/ANSI 169
Nominal Width (mm)
5
Construction Set Up
Push-pull principle
Guard Ring Material
PEI
Thrust Ring Material
PEI
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
für Schlauch Außen-Ø 6 mm
Pneumatic Connection 2
für Schlauch Außen-Ø 6 mm
Hose Plug-in Depth (mm)
15,8
Ambient Temperature (°C)
0 to 150
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
3 - severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Information About Operating Pressure
Wasser: max. 0,6 MPa bei 0 - 50 °C
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 2
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568060848
Manufacturer
Festo
