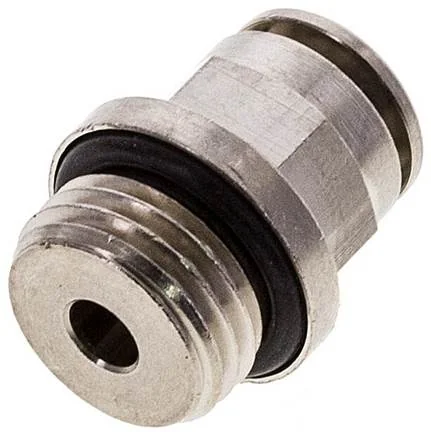

Festo - NPQM-D-G14-Q6-P10-558664 - Push-In Fitting

SKU: festo-npqm-d-g14-q6-p10-558664

Browse all parts
Festo - NPQM-D-G14-Q6-P10-558664 - Push-In Fitting

€5.62€4.80 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€5.62

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
silver
Fastening Type
Innensechskant SW4
Housing Material
brass, nickel-plated
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Nominal Width (mm)
4
Construction Set Up
Push-pull principle
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G1/4
Pneumatic Connection 2
für Schlauch Außen-Ø 6 mm
Ambient Temperature (°C)
-20 to 70
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
7,5
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,6
EAN
4052568054601
Manufacturer
Festo
