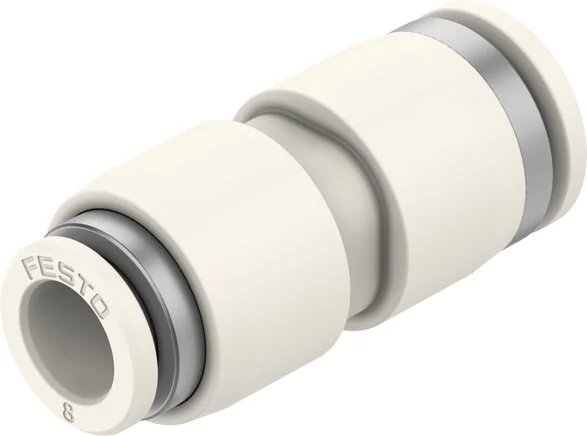

Festo - NPQO-D-Q10-Q8-P5-8203318 - Push-In Fitting

SKU: festo-npqo-d-q10-q8-p5-8203318

Browse all parts
Festo - NPQO-D-Q10-Q8-P5-8203318 - Push-In Fitting

€16.30€13.93 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€16.30

Brand
Festo
Design
straight shape
Packing Size
5
Material Note
RoHs compliant
Sleeve Colour
white
O-ring Material
FPM
Sleeve Material
PVDF
Housing Material
PVDF
Operating Medium
Nitrogen
Food Compatibility
See expanded material information
Nominal Width (mm)
7
Construction Set Up
Push-pull principle
Thrust Ring Material
PVDF
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
für Schlauch Außen-Ø 10 mm
Pneumatic Connection 2
für Schlauch Außen-Ø 8 mm
Hose Plug-in Depth (mm)
20,1
Medium Temperature (°C)
0 to 120
Ambient Temperature (°C)
0 to 60
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On The Tubing Insertion Depth
Ø8 Tiefe 17,6 mm
Biocompatibility According To Standard
ISO 18562
Maximum Impurity Level For Hydrocarbons
550
Oxygen Suitability According To Standard
ISO 15001
Temperature Depending Operating Pressure (MPa)
-0,09 to 1,2
Operating Pressure Complete Temperature Range (MPa)
-0,09 to 0,3
EAN
4052568659509
Manufacturer
Festo
