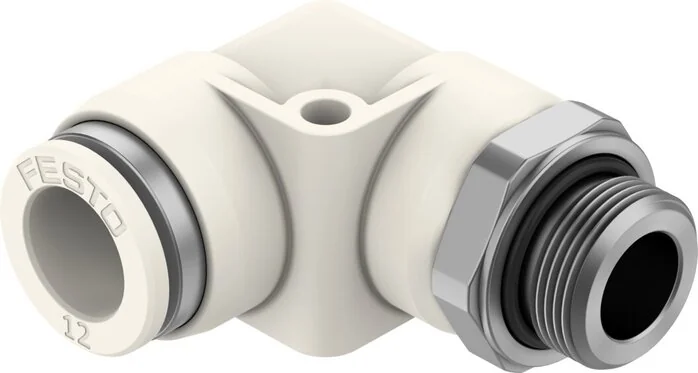

Festo - NPQO-L-G38-Q12-P5-8203311 - L Fitting

SKU: festo-npqo-l-g38-q12-p5-8203311

Browse all parts
Festo - NPQO-L-G38-Q12-P5-8203311 - L Fitting

€45.22€38.65 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€45.22

Brand
Festo
Design
L-Form
Variants
mit Befestigungsbohrungen
Packing Size
5
Material Note
RoHs compliant
Sleeve Colour
white
Stud Material
High-alloyed stainless steels
O-ring Material
FPM
Sleeve Material
PVDF
Housing Material
PVDF
Operating Medium
Nitrogen
Seal Type On Stud
O-ring
Food Compatibility
See expanded material information
Nominal Width (mm)
10
Construction Set Up
Push-pull principle
Thrust Ring Material
PVDF
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Male thread G3/8
Pneumatic Connection 2
für Schlauch Außen-Ø 12 mm
Hose Plug-in Depth (mm)
22
Thread Sealing Material
FPM
Medium Temperature (°C)
0 to 120
Ambient Temperature (°C)
0 to 60
Max. Tightening Torque (Nm)
10,0
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
9,00
Biocompatibility According To Standard
ISO 18562
Tolerance To Nominal Tightening Torque
± 10 %
Maximum Impurity Level For Hydrocarbons
550
Oxygen Suitability According To Standard
ISO 15001
Temperature Depending Operating Pressure (MPa)
-0,09 to 1,2
Operating Pressure Complete Temperature Range (MPa)
-0,09 to 0,3
EAN
4052568659431
Manufacturer
Festo
