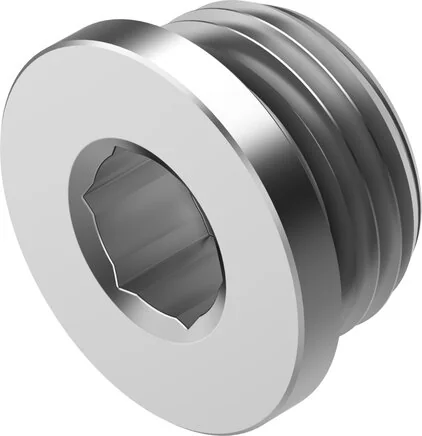

Festo - NPQR-BK-G12-8085676 - Plug Screw

SKU: festo-npqr-bk-g12-8085676

Browse all parts
Festo - NPQR-BK-G12-8085676 - Plug Screw

€18.31€15.65 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€18.31

Brand
Festo
Size
Standard
Design
Verschlussschraube
Packing Size
1
Material Note
RoHs compliant
Fastening Type
Hexagon socket SW10
Housing Material
High-alloyed stainless steels
Operating Medium
Wasser (flüssig, eisfrei)
Seal Type On Stud
gasket
Certification Body
NSF C0556009
Food Compatibility
NSF/ANSI 169
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
Male thread G1/2
Thread Sealing Material
FPM
Ambient Temperature (°C)
-20 to 150
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Nominal Tightening Torque (Nm)
9,0
Information About Operating Pressure
Wasser: max. 0,7 MPa bei 0 - 80 °C
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,6
Cleanroom Suitability, Measured According To ISO 14644-14
Statisch installiertes Element, keine sinnvolle Bewertung möglich nach ISO 14644-1
EAN
4052568451165
Manufacturer
Festo
