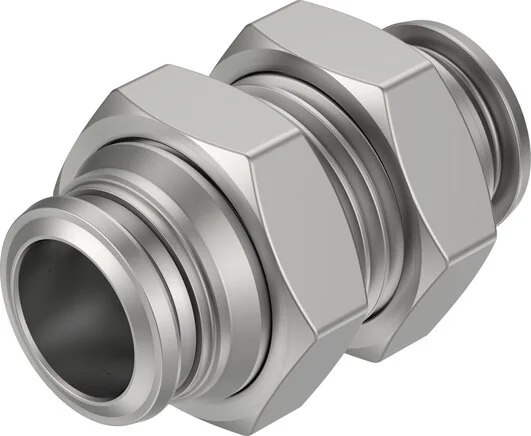

Festo - NPQR-H-Q16-E-8099104 - Bulkhead Push-In Fitting

SKU: festo-npqr-h-q16-e-8099104

Browse all parts
Festo - NPQR-H-Q16-E-8099104 - Bulkhead Push-In Fitting

€177.93€152.08 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€177.93

Brand
Festo
Size
Standard
Design
Schott
Nut Material
High-alloyed stainless steels
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
silver
Sleeve Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Operating Medium
Wasser (flüssig, eisfrei)
Certification Body
NSF C0556009
Food Compatibility
NSF/ANSI 169
Nominal Width (mm)
15
Construction Set Up
Push-pull principle
Guard Ring Material
High-alloyed stainless steels
Thrust Ring Material
PPSU
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
für Schlauch Außen-Ø 16 mm
Pneumatic Connection 2
für Schlauch Außen-Ø 16 mm
Hose Plug-in Depth (mm)
23,5
Ambient Temperature (°C)
-5 to 150
Max. Tightening Torque (Nm)
20
Min. Tightening Torque (Nm)
15
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Information About Operating Pressure
Wasser: max. 0,7 MPa bei 0 - 80 °C
Note On Operating And Control Medium
Oiled operation possible
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568553425
Manufacturer
Festo
