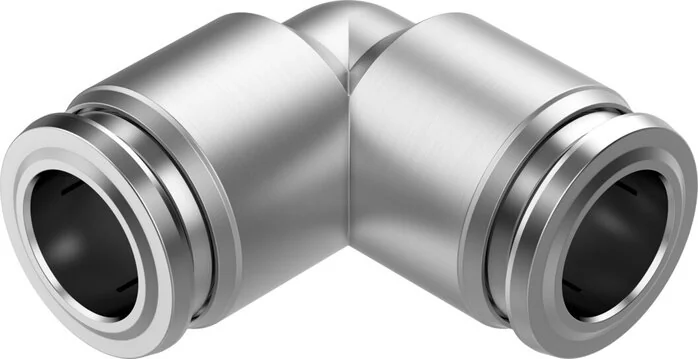

Festo - NPQR-L-Q12-E-8085713 - Plug Connector

SKU: festo-npqr-l-q12-e-8085713

Browse all parts
Festo - NPQR-L-Q12-E-8085713 - Plug Connector

€111.27€95.10 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€111.27

Brand
Festo
Size
Standard
Design
L-Form
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
silver
Sleeve Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Operating Medium
Wasser (flüssig, eisfrei)
Certification Body
NSF C0556009
Food Compatibility
NSF/ANSI 169
Nominal Width (mm)
11
Construction Set Up
Push-pull principle
Guard Ring Material
High-alloyed stainless steels
Thrust Ring Material
PPSU
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
für Schlauch Außen-Ø 12 mm
Pneumatic Connection 2
für Schlauch Außen-Ø 12 mm
Hose Plug-in Depth (mm)
17,4
Ambient Temperature (°C)
-20 to 150
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Information About Operating Pressure
Wasser: max. 0,7 MPa bei 0 - 80 °C
Note On Operating And Control Medium
Oiled operation possible
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,6
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568455019
Manufacturer
Festo
