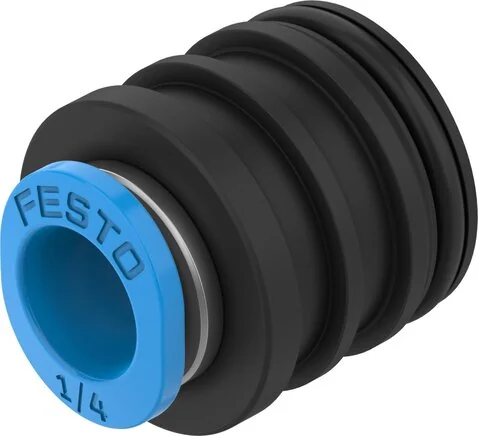

Festo - NPQX-D-PC15-T14-P10-8230012 - Cartridge

SKU: festo-npqx-d-pc15-t14-p10-8230012

Browse all parts
Festo - NPQX-D-PC15-T14-P10-8230012 - Cartridge

€8.04€6.87 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€8.04

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Fastening Type
With Holding clamp
Housing Material
PA reinforced
Operating Medium
Inerte Gase
Seal Type On Stud
Without seal
Nominal Width (mm)
4,5
Construction Set Up
Push-pull principle
Installation Position
Horizontal
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Cartridge 15 mm
Pneumatic Connection 2
"für Schlauch Außen-Ø 1/4"""
Hose Plug-in Depth (mm)
11,93
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
3 - severe corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568772529
Manufacturer
Festo
