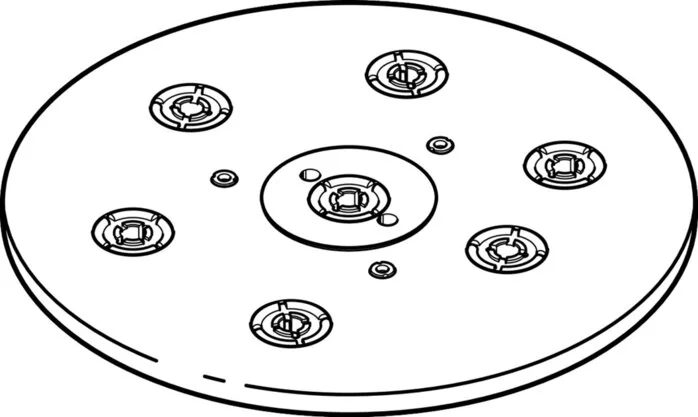

Festo - OGGB-140-G18-2-574567 - Bernoulli Gripper

SKU: festo-oggb-140-g18-2-574567

Browse all parts
Festo - OGGB-140-G18-2-574567 - Bernoulli Gripper

€564.74€482.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€564.74

Brand
Festo
Material Note
RoHs compliant
Fastening Type
with female thread
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Connection Position
Top/side
Pneumatic Connection
G1/8
Gripper Diameter (mm)
140
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Alternative Connections
G1/8
Spacer Element Material
POM
Medium Temperature (°C)
0 to 60
Operating Pressure (bar)
0 to 6
Ambient Temperature (°C)
0 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Operating Pressure (bar)
1
Note On Operating And Control Medium
Oiled operation not possible
Air Consumption A Nominal Operating Pressure
110
Shear Force For Nominal Operating Pressure (N)
1
Holding Force For Nominal Operating Pressure (N)
7
Noise Level For Nominal Operating Pressure (dB(A))
65
Noise Performance Level For Nominal Operating Pressure (dB(A))
78
EAN
4052568223625
Manufacturer
Festo
