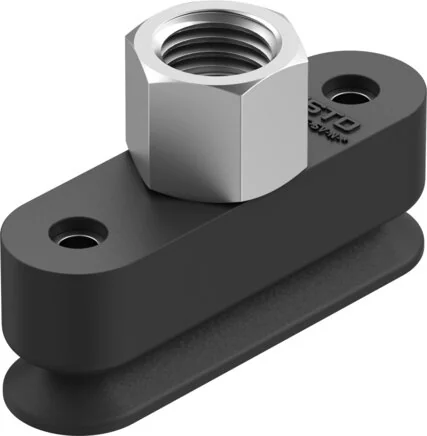

Festo - OGVM-16X55-SV-N-G14F-8073852 - Vacuum Sucker

SKU: festo-ogvm-16x55-sv-n-g14f-8073852

Browse all parts
Festo - OGVM-16X55-SV-N-G14F-8073852 - Vacuum Sucker

€48.02€41.04 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€48.02

Brand
Festo
Colour
black
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Size
16x55 mm
Suction Cup Shape
oval flach
Vacuum Connection
female thread G1/4
Nominal Width (mm)
3
Operating Pressure
-0,095 to 0
Suction Cup Volume
2
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
NBR
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-20 to 80
Min. Workpiece Radius (mm)
10
Nominal Operating Pressure
-0,06
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Height Balance Suction Cup (mm)
3,0
Holding Force For Nominal Operating Pressure (N)
36
Shear Force Vertical For Nominal Operating Pressure (N)
40
EAN
4052568300920
Manufacturer
Festo
