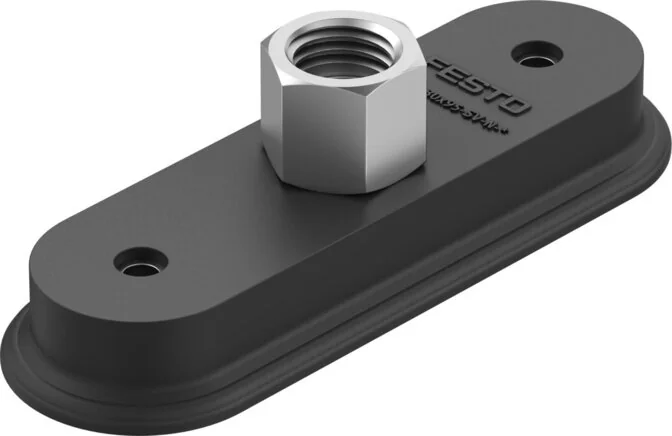

Festo - OGVM-30X95-SV-N-G14F-8073854 - Vacuum Sucker

SKU: festo-ogvm-30x95-sv-n-g14f-8073854

Browse all parts
Festo - OGVM-30X95-SV-N-G14F-8073854 - Vacuum Sucker

€51.57€44.08 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€51.57

Brand
Festo
Colour
black
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Size
30x95 mm
Suction Cup Shape
oval flach
Vacuum Connection
female thread G1/4
Nominal Width (mm)
6
Operating Pressure
-0,095 to 0
Suction Cup Volume
9,6
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
NBR
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-20 to 80
Min. Workpiece Radius (mm)
40
Nominal Operating Pressure
-0,06
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Height Balance Suction Cup (mm)
3,0
Holding Force For Nominal Operating Pressure (N)
146
Shear Force Vertical For Nominal Operating Pressure (N)
114
EAN
4052568300944
Manufacturer
Festo
