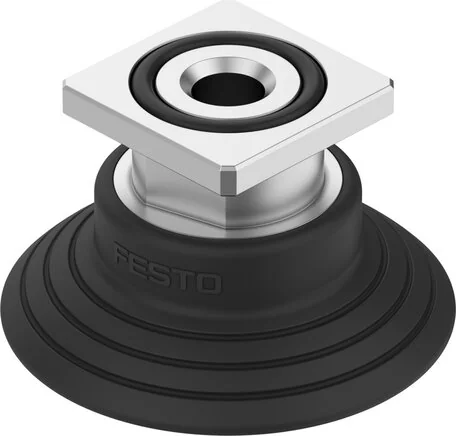

Festo - OGVM-60-S-N-RA-8213220 - Vacuum Sucker

SKU: festo-ogvm-60-s-n-ra-8213220

Browse all parts
Festo - OGVM-60-S-N-RA-8213220 - Vacuum Sucker

€56.04€47.90 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€56.04

Brand
Festo
Colour
black
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round flat
Vacuum Connection
Rechteckadapter RA
Nominal Width (mm)
8
Operating Pressure
-0,095 to 0
Suction Cup Volume
15
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
NBR
LABS (PWIS) Conformity
VDMA24364-A1/A2-L
Ambient Temperature (°C)
-20 to 80
Suction Cup Diameter (mm)
60
Min. Workpiece Radius (mm)
70
Nominal Operating Pressure
-0,06
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Height Balance Suction Cup (mm)
6,0
Shear Force For Nominal Operating Pressure (N)
99
Holding Force For Nominal Operating Pressure (N)
120
EAN
4052568790486
Manufacturer
Festo
