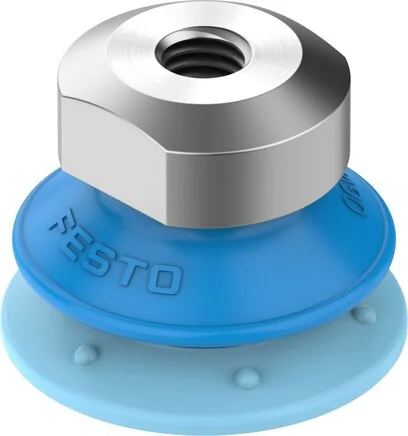

Festo - OGVN-20-A-U-M5-F-8204815 - Vacuum Sucker

SKU: festo-ogvn-20-a-u-m5-f-8204815

Browse all parts
Festo - OGVN-20-A-U-M5-F-8204815 - Vacuum Sucker

€32.39€27.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€32.39

Brand
Festo
Colour
blau/hellblau
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
A 70 ±5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
Round folding bellows1.5 times
Vacuum Connection
female thread M5
Nominal Width (mm)
4
Operating Pressure
-0,095 to 0
Suction Cup Volume
1,04
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
PUR
LABS (PWIS) Conformity
VDMA24364-Zone III
Ambient Temperature (°C)
10 to 45
Suction Cup Diameter (mm)
20
Nominal Operating Pressure
-0,07
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Height Balance Suction Cup (mm)
4,6
Holding Force For Nominal Operating Pressure (N)
14,5
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
EAN
4052568929770
Manufacturer
Festo
