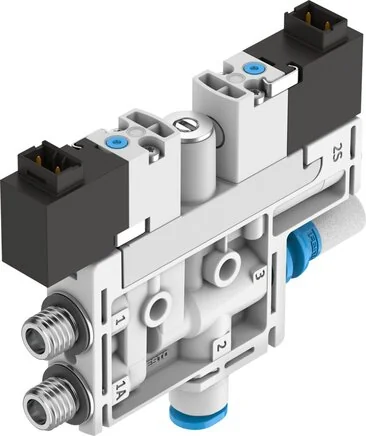

Festo - OVEL-5-H-10-P-VQ4-UC-C-A-H3-8141094 - Vacuum Suction Nozzle

SKU: festo-ovel-5-h-10-p-vq4-uc-c-a-h3-8141094

Browse all parts
Festo - OVEL-5-H-10-P-VQ4-UC-C-A-H3-8141094 - Vacuum Suction Nozzle

€212.57€181.68 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€212.57

Brand
Festo
Permission
c UL us - Listed (OL)
Max. Vacuum
89
Material Note
RoHs compliant
Power-on Time
100%
Fastening Type
on terminal strip
Seals Material
NBR
Valve Function
closed
Filter Material
POM
Filter Porosity
40
Screws Material
Steel
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Silencer Material
PE
Vacuum Connection
für Schlauch Außen-Ø 4 mm
Banjo Bolt Material
Aluminium wrought alloy
Construction Set Up
T-shape
Integrated Function
Schalldämpfer geschlossen
Jet Nozzle Material
Aluminium wrought alloy
Protection Category
IP40
Pitch Dimension (mm)
10
Hand Assist Actuation
tentative
Installation Position
arbitrary
Ejector Characteristic
Standard
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Hunt group
Pneumatic Connection 3
Schalldämpfer geschlossen
Capture Nozzle Material
POM
Medium Temperature (°C)
0 to 50
Operating Pressure (MPa)
0,2 to 0,7
Ambient Temperature (°C)
0 to 50
Coil Characteristic Value
24 V DC: 1,0 W
Regulation Screw Material
Steel
Connection Thread Material
POM
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
21.6 to 26.4
Construction Type Silencer Type
closed
Nominal Width Laval Nozzle (mm)
0,45
Nominal Operating Pressure (MPa)
0,4
Note On Operating And Control Medium
Oiled operation not possible
Electrical Connection: Input, Function
Vakuumerzeugung
Operating Pressure For Max. Vacuum (MPa)
0,44
Electrical Connection: Inlet, Fastening Type
Ratcheting lock
Electrical Connection: Input, Connection Type
2x plug
Max. Suction Volume Flow Rate Against Atmosphere
4
Noise Level For Nominal Operating Pressure (dB(A))
51
Electrical Connection: Input, Connection Technology
Wiring diagram H
Electrical Connection: Input, Number Of Pins / Wires
2
Operating Pressure For Max. Suction Volume Flow (MPa)
0,3
Air Supply Time At Nominal Operating Pressure With Ejector Pulse (s)
2
EAN
4052568566654
Manufacturer
Festo
