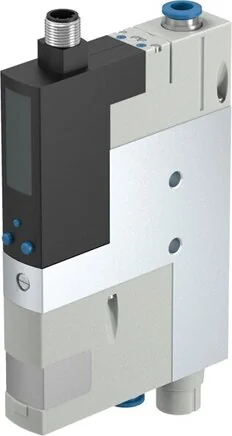

Festo - OVEM-07-H-B-QO-CE-N-LK-8037694 - Vacuum Suction Nozzle

SKU: festo-ovem-07-h-b-qo-ce-n-lk-8037694

Browse all parts
Festo - OVEM-07-H-B-QO-CE-N-LK-8037694 - Vacuum Suction Nozzle

€1,023.46€874.75 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,023.46

Brand
Festo
Report
IO-Link
KC-mark
KC-EMV
Permission
c UL us - Listed (OL)
Max. Vacuum
93
Display Type
Backlit LCD
Material Note
RoHs compliant
Pins Material
Steel
Power-on Time
100%
Control Output
2xPNP
Fastening Type
With Accessories
Seals Material
NBR
Valve Function
closed
Filter Material
Sinterstahl
Filter Porosity
40
Screws Material
Steel
Setting Options
Via display and buttons
Switch Function
Threshold comparator
Window Material
PA
Housing Material
PA reinforced
IO-Link, Profile
Smart sensor profile
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Protection Class
III
Voltage Drop (V)
1,8
Relative Humidity
5 - 85 %
Silencer Material
PU foam
Tamper-proof Fuse
Electronic locking
Vacuum Connection
QS-8
IO-Link, Device ID
0x00003E
Measured Parameter
Relative pressure
Overload Resistant
Available
Accuracy In ± % FS
3
Construction Set Up
Modular
Display Range (bar)
-0,999 to 0
IO-Link, Port Class
A
Integrated Function
vacuum switch
Jet Nozzle Material
Aluminium wrought alloy
Presentable Unit(s)
bar
Protection Category
IP65
Pitch Dimension (mm)
20
Button Field Material
TPE-U
Electrical Connection
Plug
Hand Assist Actuation
zusätzlich über Bedientasten
Installation Position
arbitrary
Measurement Principle
Piezoresistive
Plug Housing Material
brass, nickel-plated
Residual Current (mA)
0,1
Ejector Characteristic
Standard
Insulation Voltage (V)
50
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Tightening Torque
2,5 Nm mit Durchgangsbohrung
Plug Contacts Material
brass, Gold plated
Pneumatic Connection 1
QS-8
Pneumatic Connection 3
QS-8
Capture Nozzle Material
POM
Degree Of Contamination
3
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Operating Pressure (bar)
2 to 8
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Coil Characteristic Value
24 V DC: Low current phase 0.3 W, high current phase 2,55 W
Control Input To Standard
IEC 61131-2
IO-Link, Function Classes
Teach channel
IO-Link, Protocol Version
Device V 1.1
Regulation Screw Material
Steel
Screw Connection Material
brass, nickel-plated
Switching Element Function
NO contact
Switching Position Display
LCD
Switching Status Indicator
Visual
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
500
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
IO-Link, Process Data Width IN
2 Bytes
Operating Voltage Range DC (V)
20.4 to 27.6
Construction Type Silencer Type
open
IO-Link, Process Data Width OUT
1 Bytes
Nominal Width Laval Nozzle (mm)
0,7
Settings Range Hysteresis (bar)
-0,9 to 0
IO-Link, Minimum Cycle Time (ms)
3.5
Nominal Operating Pressure (bar)
6
Pressure Measurement Range (bar)
-1 to 0
Reproducibility Shifting Time FS
0,6
IO-Link, Process Data Contents IN
2 bit BDC (Drucküberwachung)
IO-Link, Process Data Contents OUT
1 bit (Vakuum EIN/AUS)
Note On Operating And Control Medium
Oiled operation not possible
Settings Range Threshold Value (bar)
-0,999 to 0
Operating Pressure For Max. Vacuum (bar)
4,1
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Venting Time For Nominal Operating Pressure (s)
0,4
Max. Suction Volume Flow Rate Against Atmosphere
16
Noise Level For Nominal Operating Pressure (dB(A))
58
EAN
4052568285654
Manufacturer
Festo
