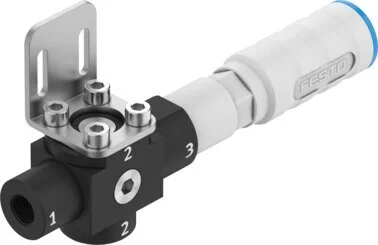

Festo - OVPN-14-L2-PG14-G12-UA-8199142 - Vacuum Suction Nozzle

SKU: festo-ovpn-14-l2-pg14-g12-ua-8199142

Browse all parts
Festo - OVPN-14-L2-PG14-G12-UA-8199142 - Vacuum Suction Nozzle

€297.18€254.00 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€297.18

Brand
Festo
Max. Vacuum
81
Fastening Type
With mounting brackets
Seals Material
NBR
Screws Material
High-alloyed stainless steels
Housing Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Silencer Material
PU foam
Vacuum Connection
G1/2
Construction Set Up
Vakuumsaugdüse 2-stufig
Integrated Function
Silencer open
Jet Nozzle Material
PA reinforced
Pitch Dimension (mm)
33
Installation Position
arbitrary
Ejector Characteristic
hoher Saugvolumenstrom
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 3
Silencer open
Capture Nozzle Material
PA reinforced
Medium Temperature (°C)
0 to 60
Operating Pressure (MPa)
0.1 to 0.8
Ambient Temperature (°C)
0 to 60
Connection Thread Material
POM
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Construction Type Silencer Type
open
Nominal Width Laval Nozzle (mm)
1,4
Nominal Operating Pressure (MPa)
0,6
Note On Operating And Control Medium
Oiled operation not possible
Operating Pressure For Max. Vacuum (MPa)
0,79
Venting Time For Nominal Operating Pressure (s)
0,37
Max. Suction Volume Flow Rate Against Atmosphere
160
Noise Level For Nominal Operating Pressure (dB(A))
60
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Operating Pressure For Max. Suction Volume Flow (MPa)
0,4
EAN
4052568661120
Manufacturer
Festo
