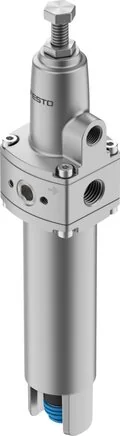

Festo - PCRP-44-G14-12-C-R1-VC-T31-8195725 - Filter Regulating Valve

SKU: festo-pcrp-44-g14-12-c-r1-vc-t31-8195725

Browse all parts
Festo - PCRP-44-G14-12-C-R1-VC-T31-8195725 - Filter Regulating Valve

€479.74€410.03 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€479.74

Brand
Festo
Size
44
Model Series
P
Material Note
RoHs compliant
Actuation Fuse
Regulierschraube mit Konterung
Fastening Type
pipe installation
Seals Material
NBR
Clamps Material
High-alloyed stainless steels
Filter Material
PE
Filter Porosity
5
Spring Material
High-alloyed stainless steels
Condensate Drain
Fully automatic
Housing Material
Cast stainless steel
Max. Normal Flow
2.400
Operating Medium
Inerte Gase
Pressure Display
G1/4 prepared
Construction Set Up
Filter regulator with pressure gauge
Controller Function
With relieving
Complies To Standard
NACE MR0175/ISO 15156 (Gehäuse und Schale)
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Condensate Amount
12
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/8
Filter Carrier Material
POM
Material Number Housing
1.4409/CF3M(316L)
Material Number Of Bowl
1.4409/CF3M (316L)
Medium Temperature (°C)
0 to 60
Operating Pressure (MPa)
0,2 to 1,2
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
-10 to 60
Mounting Bracket Material
High-alloyed stainless steels
Pressure Gauge Connection
G1/4
Regulation Screw Material
High-alloyed stainless steels
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [6:4:4]
Max. Pressure Hysteresis (bar)
0,02
Pressure Regulation Range (bar)
0.5 to 12
Note On Operating And Control Medium
Oiled operation possible
Standard Nominal Flow Rate (Standardised To DIN 1343)
1600
EAN
4052568643690
Manufacturer
Festo
