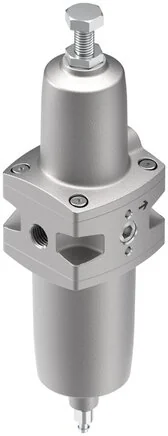

Festo - PCRP-64-G12-7-E-R1-M-T18-4787813 - Filter Regulating Valve

SKU: festo-pcrp-64-g12-7-e-r1-m-t18-4787813

Browse all parts
Festo - PCRP-64-G12-7-E-R1-M-T18-4787813 - Filter Regulating Valve

€427.05€365.00 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€427.05

Brand
Festo
Size
64
Model Series
P
Material Note
RoHs compliant
Actuation Fuse
Regulierschraube mit Konterung
Fastening Type
with fastening set
Seals Material
NBR
Clamps Material
Cast stainless steel
Filter Material
High-alloyed stainless steels
Filter Porosity
40
Spring Material
High-alloyed stainless steels
Condensate Drain
Manually rotating
Housing Material
Cast stainless steel
Max. Normal Flow
6.750
Operating Medium
Inerte Gase
Pressure Display
G1/4 prepared
Construction Set Up
Filter regulator without pressure gauge
Controller Function
With relieving
Complies To Standard
NACE MR0175/ISO 15156 (Gehäuse und Schale)
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Condensate Amount
30
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Filter Carrier Material
Cast stainless steel
Material Number Housing
1.4409/CF3M(316L)
Material Number Of Bowl
1.4409/CF3M (316L)
Material Of Drain Screw
High-alloyed stainless steels
Medium Temperature (°C)
-20 to 80
Operating Pressure (MPa)
0,1 to 2
Ambient Temperature (°C)
-20 to 80
Bearing Temperature (°C)
-20 to 80
Material Number Of Filter
1.4404/316L
Mounting Bracket Material
High-alloyed stainless steels
Pressure Gauge Connection
G1/4
Regulation Screw Material
High-alloyed stainless steels
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [7:4:4]
Material Number Of Drain Screw
1.4404/316L
Max. Pressure Hysteresis (bar)
0,2
Pressure Regulation Range (bar)
0.5 to 7
Material Number Of Filter Support
1.4409/CF3M(316L)
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
4115
EAN
4052568418885
Manufacturer
Festo
