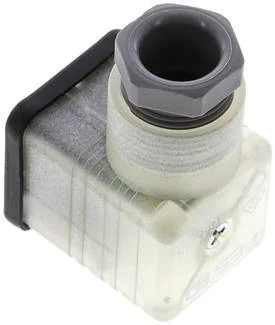

Festo - PEV-1/4-WD-LED-230-164275 - Angle Socket

SKU: festo-pev-1-4-wd-led-230-164275

Browse all parts
Festo - PEV-1/4-WD-LED-230-164275 - Angle Socket

€40.77€34.85 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€40.77

Brand
Festo
Cable Gland
Pg11
Cable Output
Angled
Material Note
RoHs compliant
Fastening Type
Permanently screwed
Housing Colour
transparent
Housing Material
PA6 reinforced
Based On Standard
EN 175301-803
Protection Category
IP65
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Tin plated
Connection Cross-section
0,25 to 1,5
Ambient Temperature (°C)
-40 to 80
Switching Status Indicator
LED green
Permitted Cable Diameter (mm)
4,5 to 11
Operating Voltage Range AC (V)
150 to 230
Operating Voltage Range DC (V)
140 to 180
Electrical Connection 1, Design
Angular
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
8
Electrical Connection 1, Fastening Type
Zentralschraube M3
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 1, Occupied Pin / Wire
4
Electrical Connection 2, Occupied Pin / Wire
5
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Wiring diagram shape A acc. to EN 175301-803
Electrical Connection 2, Connection Technology
Screw clamp
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 2, Number Of Pins / Wires
5
EAN
4052568036898
Manufacturer
Festo
