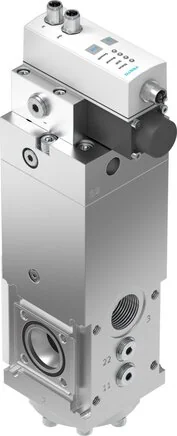

Festo - PREL-90-HP3-V1-V-20CFX-S1-4-1709135 - Electric Pressure Regulating Valve

SKU: festo-prel-90-hp3-v1-v-20cfx-s1-4-1709135

Browse all parts
Festo - PREL-90-HP3-V1-V-20CFX-S1-4-1709135 - Electric Pressure Regulating Valve

€8,278.34€7,075.50 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€8,278.34

Brand
Festo
Size
90
Permission
Special Equipment Type Test Certification
Model Series
L
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With Accessories
Spring Material
spring steel
Housing Material
Anodised aluminium
Nominal Width DN
24
Operating Medium
Inerte Gase
Food Compatibility
See expanded material information
Construction Set Up
Electrically adjustable pressure regulator valve
Controller Function
With relieving
Cover Down Material
Anodised aluminium
Installation Position
vertical
TARGET / ACTUAL Value
Voltage type 0 - 10 V
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
G1
Pneumatic Connection 2
G1
Pneumatic Connection 3
G1
Pneumatic Connection 11
G1/4
Pneumatic Connection 22
G1/4
Pneumatic Connection 82
G3/8
Medium Temperature (°C)
5 to 50
Operating Pressure (MPa)
0 to 5
Ambient Temperature (°C)
5 to 50
Bearing Temperature (°C)
-10 to 60
Electrical Connection, IN
plug, M12, 5 pin, A-coded
Electrical Connection: OUT
plug, M12, 5 pin, A-coded
Signal Range Analogue Input
0 - 10 V
Signal Range Analogue Output
0 - 10 V
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Pressure Regulation Range (bar)
0.5 to 20
Nominal Operating Voltage DC (V)
24
EAN
4052568263966
Manufacturer
Festo
