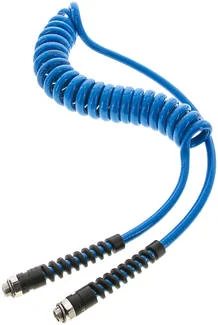

Festo - PUN-10X1,5-SG-2,4-BL-1/4-533463 - Spiral Plastic Hose

SKU: festo-pun-10x1-5-sg-2-4-bl-1-4-533463

Browse all parts
Festo - PUN-10X1,5-SG-2,4-BL-1/4-533463 - Spiral Plastic Hose

€105.58€90.24 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€105.58

Brand
Festo
Colour
blue
Hose Material
TPE-U(PU)
Material Note
RoHs compliant
Winding Count
21
Shore Hardness
D 50 ±3
Block Length (m)
0,891
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Inner Diameter (mm)
6
Outer Diameter (mm)
10
Operating Length (m)
2,4
Winding Diameter (mm)
42
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G1/4
Pneumatic Connection 2
Male thread G1/4
Bend Protection Material
PA
Ambient Temperature (°C)
-40 to 60
Connection Thread Material
nickel-plated
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
10
Flow-relevant Bending Radius (mm)
50
Tolerance To Nominal Tightening Torque
± 20 %
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,5
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568086503
Manufacturer
Festo
