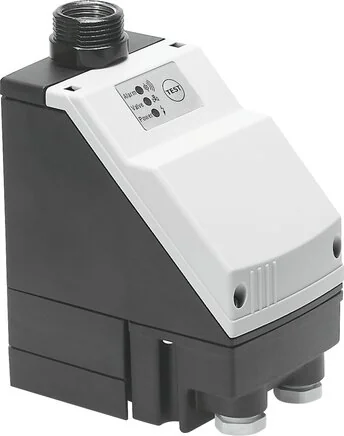

Festo - PWEA-AC-3D-538681 - Condensate Drain

SKU: festo-pwea-ac-3d-538681

Browse all parts
Festo - PWEA-AC-3D-538681 - Condensate Drain

€664.45€567.91 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€664.45

Brand
Festo
KC-mark
KC-EMV
Permission
C-tick
Alarm Output
Contact
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
pipe installation
Valve Function
3/2 closed monostable
Condensate Drain
Fully automatic
Housing Material
Plastic
Operating Medium
Compressed air to ISO 8573-1:2010 [-:-:-]
Protection Class
III
Operating Element
mit Testtaste
Measured Parameter
Filling level
Construction Set Up
External electrical fully-automated
Protection Category
acc. to IEC 60529
Pneumatic Connection
G1/2
Electrical Connection
Screw clamp
Hand Assist Actuation
tentative
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Medium Temperature (°C)
1 to 60
Operating Pressure (bar)
0.8 to 16
Ambient Temperature (°C)
1 to 60
Bearing Temperature (°C)
-10 to 60
Switching Status Indicator
LED
Operation-readiness Display
LED
Condensate Container Material
Aluminium wrought alloy
Condenser Discharge Connection
PK-8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Operating Voltage DC (V)
24
Nominal Performance Condensate Drain
2
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
EAN
4052568176396
Manufacturer
Festo
