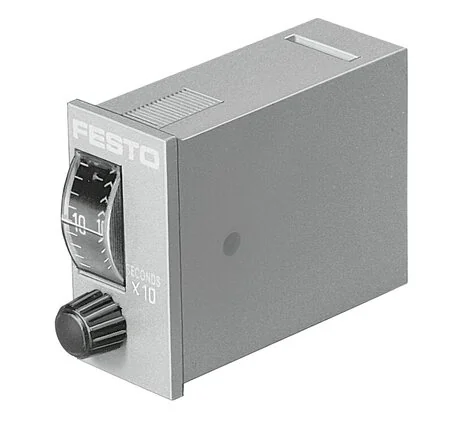

Festo - PZVT-AUT-158496 - Reset Module

SKU: festo-pzvt-aut-158496

Browse all parts
Festo - PZVT-AUT-158496 - Reset Module

€365.29€312.21 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€365.29

Brand
Festo
Material Note
RoHs compliant
Fastening Type
Front panel integration
Housing Material
ABS
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Construction Set Up
Mechanical sequence counter with pneumatic actuator
Protection Category
acc. to IEC 60529
Pneumatic Connection
female thread M5
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Operating Pressure (bar)
2 to 6
Switch-on Pressure (bar)
1,6
Adjustable Delay Time (s)
0.2 to 2
Ambient Temperature (°C)
-15 to 60
Switch-off Pressure (bar)
0,1
Repeatability Time Setting
± 0,3 s
Pause Duration For Reset (ms)
200
Note On Operating And Control Medium
Oiled operation not possible
Standard Nominal Flow Rate (Standardised To DIN 1343)
50
EAN
4052568125226
Manufacturer
Festo
