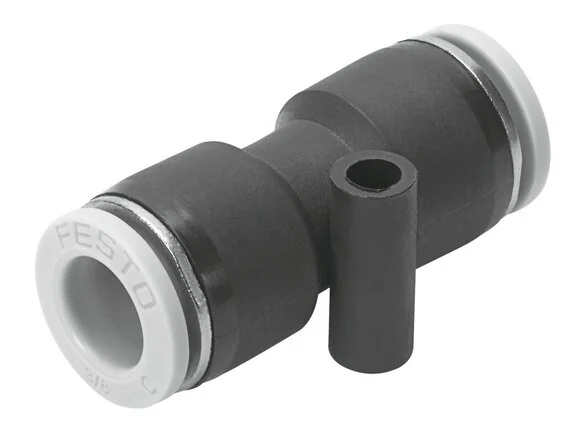

Festo - QB-1/2T-U-564759 - Push-In Fitting

SKU: festo-qb-1-2t-u-564759

Browse all parts
Festo - QB-1/2T-U-564759 - Push-In Fitting

€9.14€7.81 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€9.14

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
5
Material Note
RoHs compliant
Nominal Width
8,992
Sleeve Colour
Grey
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
"für Schlauch Außen-Ø 1/2"""
Pneumatic Connection 2
"für Schlauch Außen-Ø 1/2"""
Ambient Temperature (°C)
0 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568366452
Manufacturer
Festo
