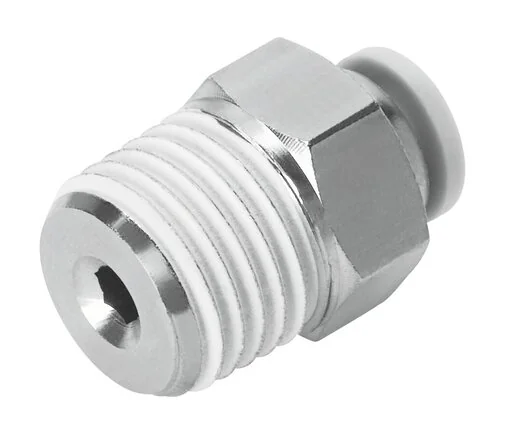

Festo - QB-3/16T-5/32-U-564797 - Push-In Fitting

SKU: festo-qb-3-16t-5-32-u-564797

Browse all parts
Festo - QB-3/16T-5/32-U-564797 - Push-In Fitting

€6.36€5.44 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€6.36

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Nominal Width
3,2
Sleeve Colour
Grey
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
"für Schlauch Außen-Ø 3/16"""
Pneumatic Connection 2
"für Schlauch Außen-Ø 5/32"""
Ambient Temperature (°C)
0 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568366810
Manufacturer
Festo
