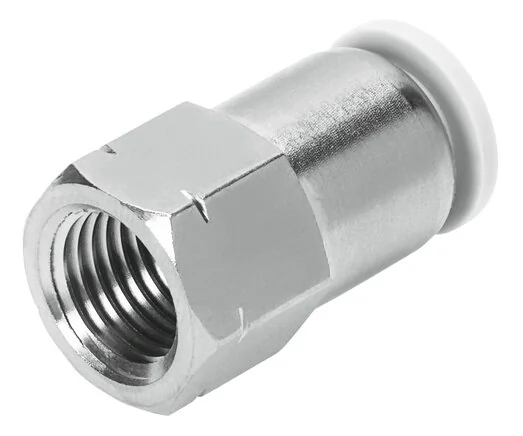

Festo - QBF-3/8-1/2-U-564650 - Push-In Fitting

SKU: festo-qbf-3-8-1-2-u-564650

Browse all parts
Festo - QBF-3/8-1/2-U-564650 - Push-In Fitting

€8.92€7.62 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€8.92

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
5
Material Note
RoHs compliant
Nominal Width
10,008
Sleeve Colour
Grey
Fastening Type
Außensechskant 7/8
Sleeve Material
POM
Housing Material
brass, nickel-plated
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
coating
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Innengewinde 3/8 NPT
Pneumatic Connection 2
"für Schlauch Außen-Ø 1/2"""
Thread Sealing Material
PTFE
Ambient Temperature (°C)
0 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568365363
Manufacturer
Festo
