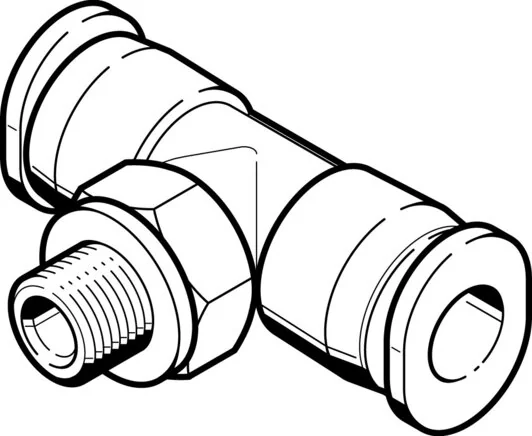

Festo - QBMT-10-32-UNF-1/4-U-573067 - T Fitting

SKU: festo-qbmt-10-32-unf-1-4-u-573067

Browse all parts
Festo - QBMT-10-32-UNF-1/4-U-573067 - T Fitting

€8.30€7.09 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€8.30

Brand
Festo
Size
Mini
Design
T-shape
Packing Size
10
Material Note
RoHs compliant
Nominal Width
2,489
Sleeve Colour
Grey
Fastening Type
Außensechskant 5/16
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Tightening Torque
1,5
Pneumatic Connection 1
Außengewinde 10-32 UNF-2A
Pneumatic Connection 2
"für Schlauch Außen-Ø 1/4"""
Ambient Temperature (°C)
0 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568376017
Manufacturer
Festo
