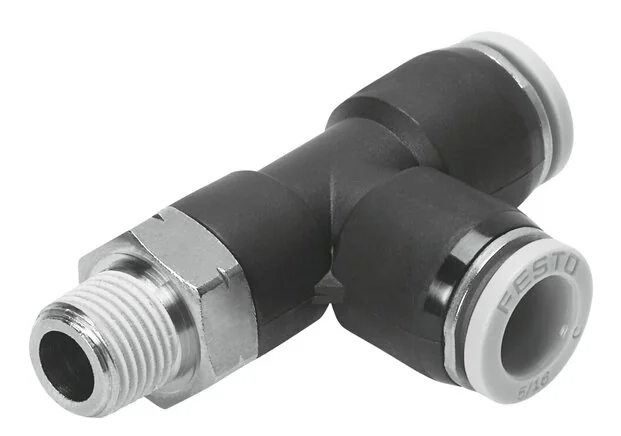

Festo - QBTL-3/8-3/16-U-564721 - T Fitting

SKU: festo-qbtl-3-8-3-16-u-564721

Browse all parts
Festo - QBTL-3/8-3/16-U-564721 - T Fitting

€9.58€8.19 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€9.58

Brand
Festo
Size
Standard
Design
L-Form, zusätzlicher Steckanschluss längs
Packing Size
10
Material Note
RoHs compliant
Nominal Width
2,997
Sleeve Colour
Grey
Fastening Type
Außensechskant 11/16
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
coating
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Außengewinde 3/8 NPT
Pneumatic Connection 2
"für Schlauch Außen-Ø 3/16"""
Thread Sealing Material
PTFE
Ambient Temperature (°C)
0 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568366070
Manufacturer
Festo
