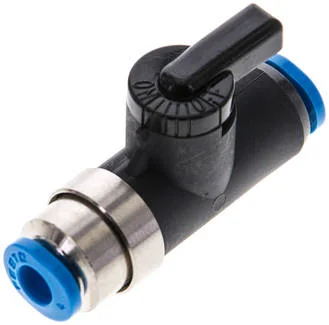

Festo - QH-QS-4-153483 - Ball Valve

SKU: festo-qh-qs-4-153483

Browse all parts
Festo - QH-QS-4-153483 - Ball Valve

€24.25€20.73 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€24.25

Brand
Festo
Material Note
RoHs compliant
Actuation Type
Manually
Fastening Type
pipe installation
Valve Function
2/2 Bistable
Housing Material
PBTP
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Sealing Principle
Soft
Nominal Width (mm)
2,5
Construction Set Up
ball valve
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-4
Pneumatic Connection 2
QS-4
Operating Pressure (MPa)
-0,1 to 1
Ambient Temperature (°C)
0 to 60
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
148
EAN
4052568034993
Manufacturer
Festo
