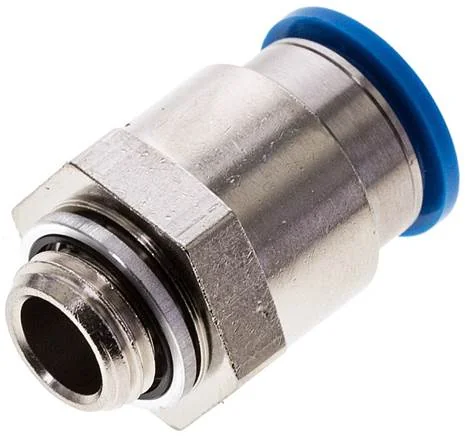

Festo - QS-G1/4-12-186350 - Push-In Fitting

SKU: festo-qs-g1-4-12-186350

Browse all parts
Festo - QS-G1/4-12-186350 - Push-In Fitting

€8.26€7.06 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€8.26

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Fastening Type
Außensechskant SW21
Sleeve Material
POM
Housing Material
brass, nickel-plated
Operating Medium
Wasser (flüssig, eisfrei)
Seal Type On Stud
gasket
Nominal Width (mm)
8,5
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G1/4
Pneumatic Connection 2
für Schlauch Außen-Ø 12 mm
Hose Plug-in Depth (mm)
23,3
Ambient Temperature (°C)
-10 to 80
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
9
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Wasser: G-Gewinde nur möglich mit Dichtring Typ OL als zusätzlichem Zubehör
Tolerance To Nominal Tightening Torque
± 20 %
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
EAN
4052568041359
Manufacturer
Festo
