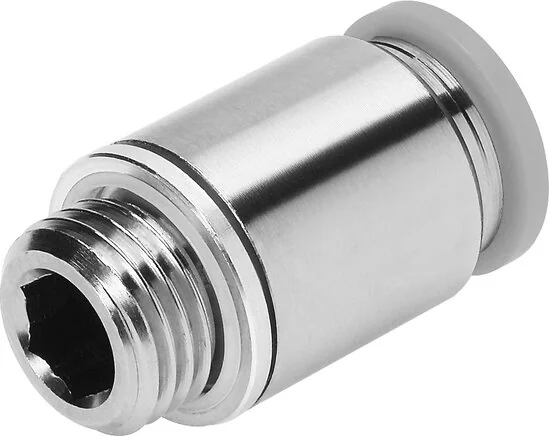

Festo - QS-M5-1/4-I-U-M-192808 - Push-In Fitting

SKU: festo-qs-m5-1-4-i-u-m-192808

Browse all parts
Festo - QS-M5-1/4-I-U-M-192808 - Push-In Fitting

€6.77€5.79 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€6.77

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
Grey
Fastening Type
Hexagon socket SW2.5
Sleeve Material
POM
Housing Material
nickel-plated
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Nominal Width (mm)
2,591
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread M5
Pneumatic Connection 2
"für Schlauch Außen-Ø 1/4"""
Maritime Classification
see Certificate
Ambient Temperature (°C)
0 to 60
Nominal Tightening Torque
1,33
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568325176
Manufacturer
Festo
