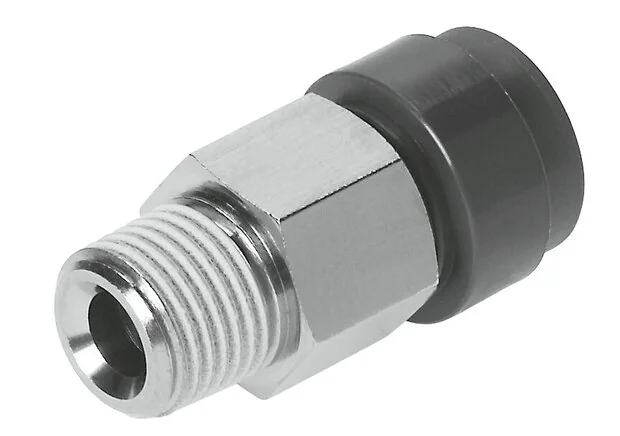

Festo - QS-V0-3/8-8-160506 - Push-In Fitting

SKU: festo-qs-v0-3-8-8-160506

Browse all parts
Festo - QS-V0-3/8-8-160506 - Push-In Fitting

€11.96€10.22 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€11.96

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
black
Stud Material
Nickel-plated brass
Fastening Type
Außensechskant SW17
Sleeve Material
PBT
Housing Material
PBT
Operating Medium
Wasser (flüssig, eisfrei)
Seal Type On Stud
coating
Nominal Width (mm)
7
Construction Set Up
Push-pull principle
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread R3/8
Pneumatic Connection 2
für Schlauch Außen-Ø 8 mm
Ambient Temperature (°C)
0 to 60
Fire Inspection, Material
UL94 V-0 (Lösering)
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Hose Clamping Segment Material
Brass
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568035556
Manufacturer
Festo
