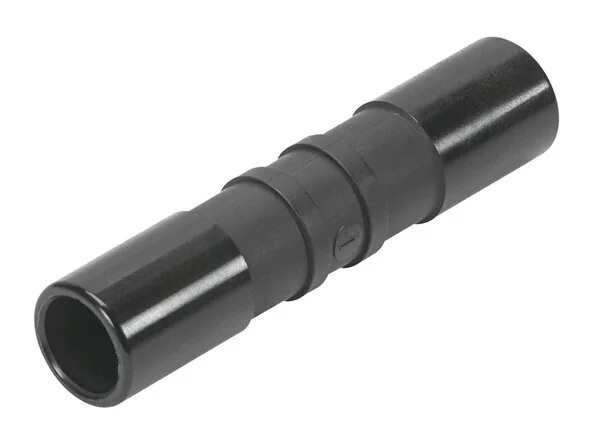

Festo - QSH-4-100-130723 - Push-In Sleeve

SKU: festo-qsh-4-100-130723

Browse all parts
Festo - QSH-4-100-130723 - Push-In Sleeve

€4.26€3.64 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4.26

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
100
Material Note
RoHs compliant
Sleeve Colour
blue
Housing Material
PBT
Operating Medium
Wasser (flüssig, eisfrei)
Nominal Width (mm)
2,5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Steckhülse Ø 4 mm
Pneumatic Connection 2
Steckhülse Ø 4 mm
Ambient Temperature (°C)
80
Corrosion Resistance Class KBK
1 - low corrosion stress
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Oiled operation possible
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
Cleanroom Suitability, Measured According To ISO 14644-14
Statisch installiertes Element, keine sinnvolle Bewertung möglich nach ISO 14644-1
EAN
4052568024444
Manufacturer
Festo
