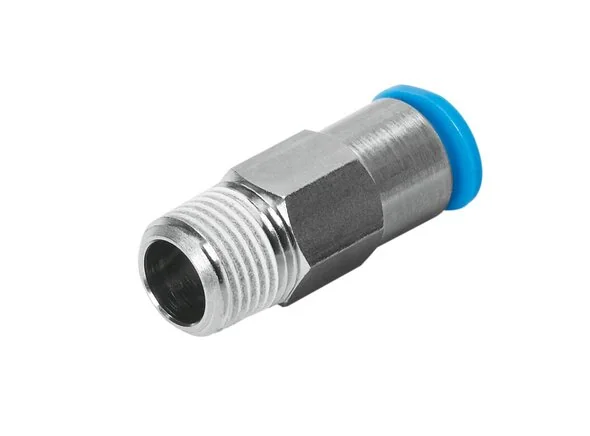

Festo - QSK-3/8-1/2-U-190717 - Locking Fitting

SKU: festo-qsk-3-8-1-2-u-190717

Browse all parts
Festo - QSK-3/8-1/2-U-190717 - Locking Fitting

€17.30€14.79 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€17.30

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
Grey
Fastening Type
Außensechskant 7/8
Sleeve Material
POM
Housing Material
nickel-plated
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
coating
Nominal Width (mm)
6,1
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Außengewinde 3/8 NPT
Pneumatic Connection 2
"für Schlauch Außen-Ø 1/2"""
Maritime Classification
see Certificate
Ambient Temperature (°C)
-10 to 60
Max. Tightening Torque (Nm)
24,0
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568323219
Manufacturer
Festo
