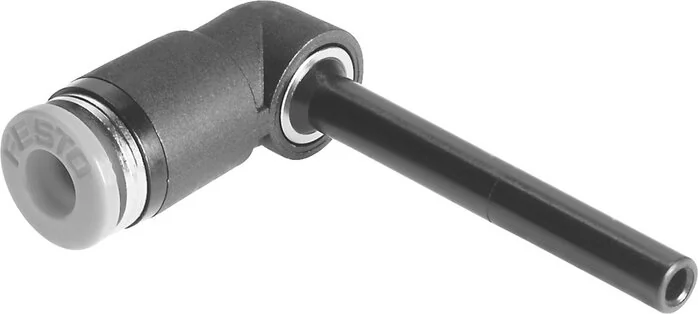

Festo - QSL-1/2H-5/16-U-190632 - L Push-In Fitting

SKU: festo-qsl-1-2h-5-16-u-190632

Browse all parts
Festo - QSL-1/2H-5/16-U-190632 - L Push-In Fitting

€11.48€9.81 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€11.48

Brand
Festo
Size
Standard
Design
L-Form
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
Grey
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
4,9
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
"Steckhülse Ø 1/2"""
Pneumatic Connection 2
"für Schlauch Außen-Ø 5/16"""
Maritime Classification
see Certificate
Ambient Temperature (°C)
-10 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568322991
Manufacturer
Festo
