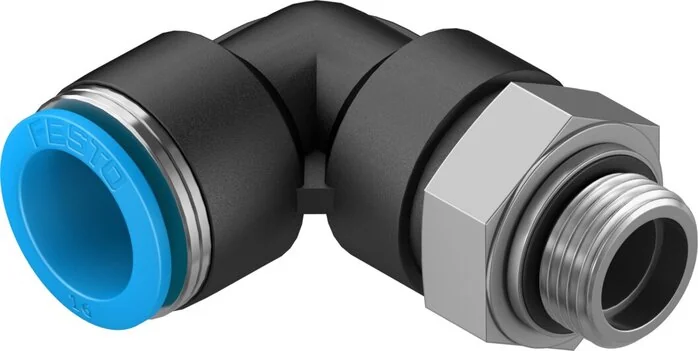

Festo - QSL-G3/8-16-186348 - L Fitting

SKU: festo-qsl-g3-8-16-186348

Browse all parts
Festo - QSL-G3/8-16-186348 - L Fitting

€32.20€27.52 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€32.20

Brand
Festo
Size
Standard
Design
L-Form
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
blue
Stud Material
Nickel-plated brass
Fastening Type
Außensechskant SW20
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Wasser (flüssig, eisfrei)
Seal Type On Stud
gasket
Nominal Width (mm)
11
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G3/8
Pneumatic Connection 2
für Schlauch Außen-Ø 16 mm
Hose Plug-in Depth (mm)
24,1
Ambient Temperature (°C)
-10 to 80
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
15,5
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Wasser: G-Gewinde nur möglich mit Dichtring Typ OL als zusätzlichem Zubehör
Tolerance To Nominal Tightening Torque
± 20 %
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
EAN
4052568041342
Manufacturer
Festo
