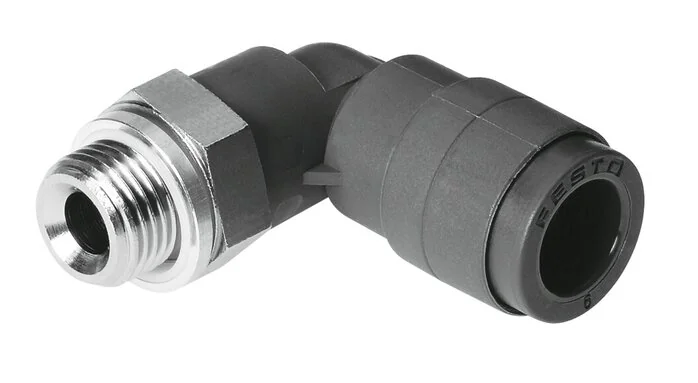

Festo - QSL-V0-G1/4-6-186327 - L Fitting

SKU: festo-qsl-v0-g1-4-6-186327

Browse all parts
Festo - QSL-V0-G1/4-6-186327 - L Fitting

€14.36€12.27 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€14.36

Brand
Festo
Size
Standard
Design
L-Form
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
black
Stud Material
Nickel-plated brass
Fastening Type
Außensechskant SW17
Sleeve Material
PBT
Housing Material
PBT
Operating Medium
Wasser (flüssig, eisfrei)
Seal Type On Stud
gasket
Nominal Width (mm)
4,3
Construction Set Up
Push-pull principle
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G1/4
Pneumatic Connection 2
für Schlauch Außen-Ø 6 mm
Thread Sealing Material
PBT
Ambient Temperature (°C)
0 to 60
Fire Inspection, Material
UL94 V-0 (Lösering)
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Hose Clamping Segment Material
Brass
Nominal Tightening Torque (Nm)
9,0
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568041137
Manufacturer
Festo
