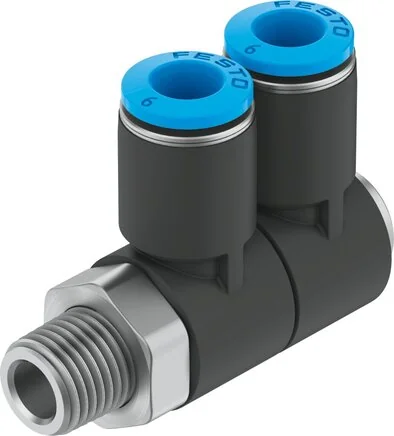

Festo - QSLV2-1/8-5/32-U-190765 - Multiple Distributor

SKU: festo-qslv2-1-8-5-32-u-190765

Browse all parts
Festo - QSLV2-1/8-5/32-U-190765 - Multiple Distributor

€17.82€15.23 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€17.82

Brand
Festo
Size
Standard
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
Grey
Stud Material
Nickel-plated brass
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Number Of Outlets
2
Seal Type On Stud
coating
Nominal Width (mm)
2,4
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Number Of Supply Lines
1
Pneumatic Connection 1
Außengewinde 1/8 NPT
Pneumatic Connection 2
"für Schlauch Außen-Ø 5/32"""
Maritime Classification
see Certificate
Ambient Temperature (°C)
-10 to 60
Max. Tightening Torque (Nm)
8
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568323547
Manufacturer
Festo
