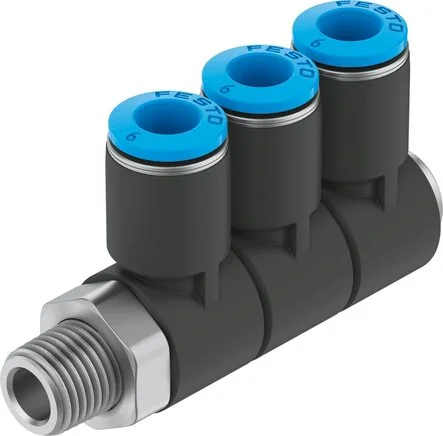

Festo - QSLV3-1/8-1/4-U-190779 - Multiple Distributor

SKU: festo-qslv3-1-8-1-4-u-190779

Browse all parts
Festo - QSLV3-1/8-1/4-U-190779 - Multiple Distributor

€24.61€21.03 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€24.61

Brand
Festo
Size
Standard
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
Grey
Stud Material
Nickel-plated brass
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Number Of Outlets
3
Seal Type On Stud
coating
Nominal Width (mm)
3,5
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Number Of Supply Lines
1
Pneumatic Connection 1
Außengewinde 1/8 NPT
Pneumatic Connection 2
"für Schlauch Außen-Ø 1/4"""
Maritime Classification
see Certificate
Ambient Temperature (°C)
-10 to 60
Max. Tightening Torque (Nm)
8
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568323684
Manufacturer
Festo
