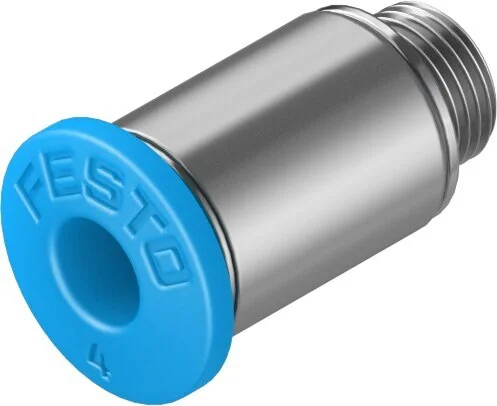

Festo - QSM-M5-3/16-I-U-M-183750 - Push-In Fitting

SKU: festo-qsm-m5-3-16-i-u-m-183750

Browse all parts
Festo - QSM-M5-3/16-I-U-M-183750 - Push-In Fitting

€5.91€5.05 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€5.91

Brand
Festo
Size
Mini
Design
straight shape
Packing Size
1
Material Note
RoHs compliant
Nominal Width
2,311
Sleeve Colour
Grey
Fastening Type
Hexagon socket SW2.5
Sleeve Material
POM
Housing Material
nickel-plated
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread M5
Pneumatic Connection 2
"für Schlauch Außen-Ø 3/16"""
Maritime Classification
see Certificate
Ambient Temperature (°C)
0 to 60
Nominal Tightening Torque
1,33
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568322038
Manufacturer
Festo
