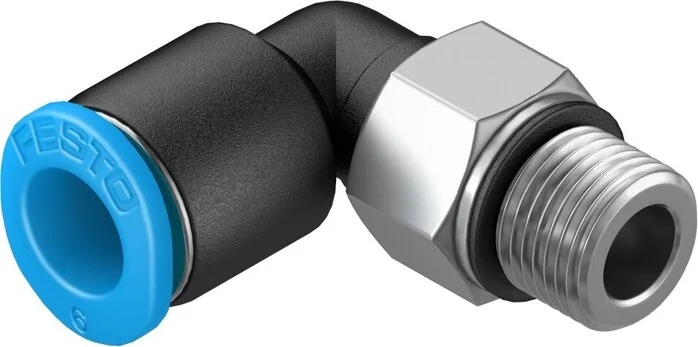

Festo - QSML-M5-3-100-130770 - L Fitting

SKU: festo-qsml-m5-3-100-130770

Browse all parts
Festo - QSML-M5-3-100-130770 - L Fitting

€5.55€4.74 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€5.55

Brand
Festo
Size
Mini
Design
L-Form
Packing Size
100
Material Note
RoHs compliant
Sleeve Colour
blue
Stud Material
Nickel-plated brass
Fastening Type
Außensechskant SW8
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Nominal Width (mm)
1,5
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread M5
Pneumatic Connection 2
für Schlauch Außen-Ø 3 mm
Hose Plug-in Depth (mm)
9,5
Ambient Temperature (°C)
-10 to 80
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
1,2
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
EAN
4052568024918
Manufacturer
Festo
