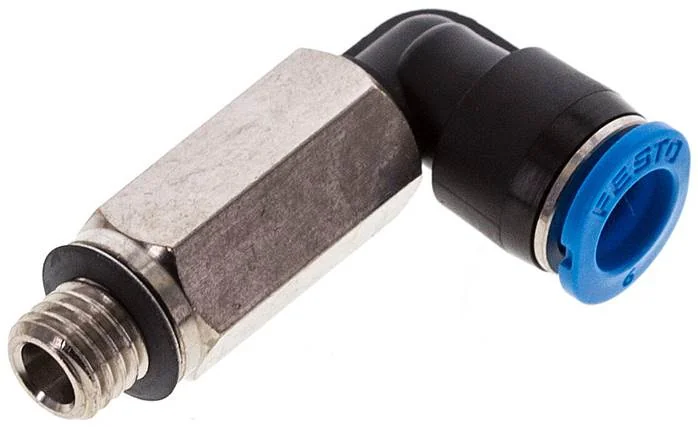

Festo - QSMLL-M7-6-186355 - L Long Push-In Fitting

SKU: festo-qsmll-m7-6-186355

Browse all parts
Festo - QSMLL-M7-6-186355 - L Long Push-In Fitting

€10.33€8.83 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€10.33

Brand
Festo
Size
Mini
Design
L-Form, lang
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Stud Material
Nickel-plated brass
Fastening Type
Außensechskant SW10
Sleeve Material
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Nominal Width (mm)
2,4
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread M7
Pneumatic Connection 2
für Schlauch Außen-Ø 6 mm
Hose Plug-in Depth (mm)
11,9
Ambient Temperature (°C)
-10 to 80
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
1 - low corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
2,2
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Temperature Depending Operating Pressure (MPa)
-0,095 to 1,4
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 0,6
EAN
4052568041403
Manufacturer
Festo
